【TS490D】 60kg 2 Axis 4 Frame EOIR System with 30X EO Sensor and Triple Infrared for UAV
  • name
  • name
  • name

【TS490D】 60kg 2 Axis 4 Frame EOIR System with 30X EO Sensor and Triple Infrared for UAV

MOQ: 1
Price: Negotiation
Standard Packaging: Air packing case
Supply Capacity: 30pcs per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONPHO
Certification
ISO9001:2015/GB/T 19001-2016
Model Number
TS60
Product Name:
Electro Optical Infrared Systems
Dimension:
≤Φ490mm×650mm
Weight:
≤60kg
Voltage:
DC28V
Power Consumption:
Peak: ≤700W
Working Temperature:
-20~60°
Highlight:

60kg 2 Axis electro optical infrared sensor

,

eots system electro optical infrared sensor

,

60kg 2 Axis eots system

Product Description

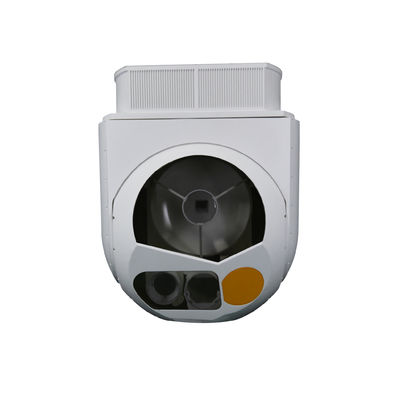

TS490D 60kg 2 Axis 4 Frame EOTS System Electro Optical Infrared Sensor
The TS490D is a gyro-stabilized electro-optic system featuring a 30X EO sensor, three IR sensors (cooled MWIR sensor, SWIR, and black & white NIR), a 30km laser rangefinder, and over 16km laser irradiation distance. With 360° continuous rotation servo motor and total weight of approximately 60kg, this airborne electro-optical system offers lightweight design, mature technology, and high stabilization accuracy. Suitable for deployment on UAVs, ships, and vehicles to meet maritime and aerial operational requirements.
System Functions
  • Provide infrared video and imagery for detection areas
  • High precision visual axis stabilization
  • Ground target detection and recognition capabilities
  • Support for search, tracking, lock, and guiding operational modes
  • Character overlay, customization, and display functions
  • Self-check and fault diagnosis capabilities
  • Target positioning with laser ranging and irradiation
  • Manual tracking, geographic tracking, automatic tracking, and search tracking
  • Real-time angular line of sight, angular speed, and range information
  • Laser instructions for laser-guided weapons with user-defined frequency codes
Technical Specifications
Component Parameter Specification
EO Sensor Wavelength 0.4μm～0.9μm
Resolution 1920*1080
FOV 24°*13.5°~1.6°*0.9°
Detection Distance ≥24km
Identification Distance ≥19km

IR Sensor IR Type MWIR | SWIR | NIR (Black & White)
Wavelength 3μm～5μm | 1μm～1.7μm | 0.7μm～0.9μm
Resolution 1280*1024 | 640*512 | 1920*1080
FOV 24°*19.0°~3.6°*2.8°,1.2°*9.6° | 27º*21.6º~2°*1.6°,0.5°*0.4° | 1.2°*0.7°
Detection Distance ≥22km
Identification Distance ≥19km
Laser Rangefinder Wavelength 1.064um
Laser Energy ≥90mJ
Ranging Distance ≥30Km
Ranging Accuracy ＜±3m
Irradiation Distance ≥16Km
Servo System Rotating Limits 360º continuous Pan, Pitch: -110° ~+20º
Stabilization Accuracy Line of sight stabilization accuracy ≤35μrad (1σ)
Max Angular Speed ≥70°/s
Max Angular Acceleration ≥185°/S
Interface Control interface: J599 | Signal and image output: optical fiber | Power: J599
Mechanical Drawing
Technical diagrams and mechanical drawings available upon request.
Company Profile
Chengdu HONPHO Technology Co., Ltd. was established in March 2018 as a national high-tech enterprise specializing in R&D, intelligent manufacturing, and service of high-end photoelectric systems. HONPHO's main products include spherical photoelectric payload systems widely deployed on UAVs, unmanned ships, unmanned vehicles, helicopters, and low-speed fixed-wing aircraft, particularly for reconnaissance and strike UAVs and armed helicopters. The company operates from nearly 5,000 square meters of space dedicated to R&D, production, operations, and offices. With over 100 employees including 2 national senior experts, 3 doctors, 21 masters, 10 senior technical experts, and 4 researchers, HONPHO has won more than 10 national and defense science and technology progress awards and holds over 20 intellectual property rights. The company is committed to becoming a world-renowned high-tech enterprise in photoelectric systems.
【TS490D】 60kg 2 Axis 4 Frame EOIR System with 30X EO Sensor and Triple Infrared for UAV 0
