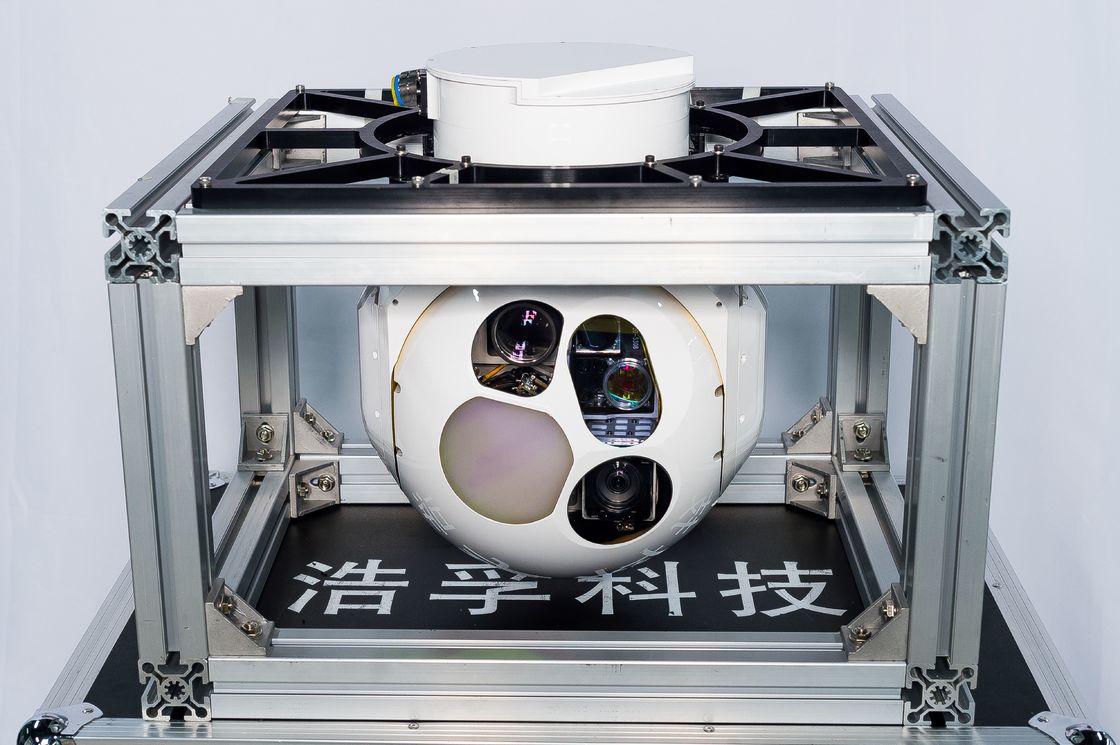

Name: Anti-Vibration Longrange Electro Optical Targeting System 1.25Kg
Brand: Chengdu Honpho Technology Co., Ltd.
SKU: TS01D
Availability: InStock

Home > products > ISR Payload >

Anti-Vibration Longrange Electro Optical Targeting System 1.25Kg

Anti-Vibration Electro Optical Targeting System

Longrange Electro Optical Targeting System

Electro Optical System 1.25Kg

Place of Origin:

China

Brand Name:

HONPHO

Certification:

ISO9001:2015/GB/T 19001-2016

Model Number:

TS01D

Request A Quote

Anti-Vibration Longrange Electro Optical Targeting System 1.25Kg

Product Details

Product Name:

Electro Optical Targeting System

Dimension:

≤Φ130mm×171mm

Weight:

≤1.25Kg

Voltage:

12V

Power Consumption:

Average:≤15W, Peak: ≤30W

Working Temperature:

-20~60°

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Air packing case

Supply Ability

200pcs per Month

2 Axis LWIR Auto Electro Optical Targeting System with Laser Rangefinder

Get Best Price

High Resolution 30X Eots System Airborne Electro Optical Pod Lightweight

Get Best Price

Video

Three Axis Monitoring Thermal Electro Optic Drone System Sensor

Get Best Price

TS130CT-01 Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible

Get Best Price

86-028-83139288

pengyong@honpho.com

86-028-87650901

Contact Now

Product Description

High Stabilization Accuracy Anti-Vibration Longrange Electro Optical Targeting System

TS01D supply anto scanning,Support target laser ranging,provide the real-time angular of line of light,angular speed and range information to the mission system,Support tracking, geographic tracking, automatic tracking and search tracking of the target

Functions

1. Provide the visible video and image for detection area

2. High precision visual axis stabilization function

3. With the capability of detection and recognition for ground target

4. Support search, tracking, lock, guiding, etc working ways

5. With character overlay, custom and display functions;

6. With self - check and fault diagnosis function

Specifications

EO sensor	Wavelength	0.4μm～0.9μm
	Resolution	1920x1080
	Focal length	4.3mm～129mm(30X)
	FOV	63.7°～2.3°
	Video output	HD-SDI(1080P 30Hz)
	Distance	PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km

IR sensor	IR Type	LWIR(un-cooled)
	Wavelength	8～14μm
	Resolution	640x512
	Pixel	12um
	NETD	50mk
	Focus length	50mm/F1.0
	FOV	8.7º×7º
	Distance	PEOPLE:Detection 0.8km; Recognition 0.2km VEHICLE:Detection 5km; Recognition 1.2km

Servo System	Rotating limits	360º continuous Pan, Pitch: -110° ~+10 º
	Angular accuracy:	≤2mrad
	Stablization accuracy	≤100μrad(1σ)(2°/Hz,1°/Hz Swing)
	Max.angular speed	≥50°/s
	Max. angular acceleration:	≥90°/S

Laser rangefinder	Wavelength	1535nm
	Performance	3km
	Ranging distance	50~3000m
	Ranging accuracy	±1

Tracking Functions	Motion speed:	30pixel/frame
	Target imaging contrast:	8%
	Target imaging pixel(Mini)	4x3 pixels
	Support	Anti -occlusion without loss of function

Interface	Communication interface	RS422 x1(TTL Optional)
	Video output	HD-SDI x1

Mechanical Drawing

Company Profile

Chengdu HONPHO Technology Co., Ltd. was established in March 2018. It is a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric system. HONPHO main product is spherical photoelectric payload systems, this payload wildly deployed in UAV,unmanned ships, umanned vehicle,helicopter and low speed fixed wing aricrafy. especially for reconnaissance and strike UAV and armed helicopter. HONPHO has nearly 5,000 square meters of space to meet the needs of R&D, production, operation and office. More than 100 employees, include 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4researchers are joined HONPHO. HONPHO won more than 10 prizes of national and national defense science and technology progress , and have over 20 intellectual property rights. We are committed to building HONPHO into a world-renowned photoelectric system high-tech enterprise
