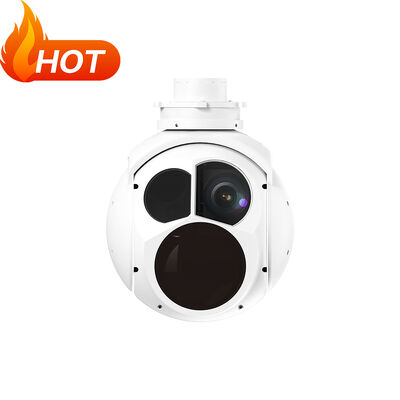

【TS170C】Two Axis Optical LWIR Electro Optical Tracking System With Laser Rangefinder

MOQ: 1
Price: Negotiation
Standard Packaging: Air packing case
Supply Capacity: 30pcs per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONPHO
Certification
ISO9001:2015/GB/T 19001-2016
Model Number
TS170C
Product Name:
Electro Optical Tracking System
Dimension:
≤Φ170mm×221mm
Weight:
≤2.55kg
Angular Accuracy:
≤2mrad
Rotating Limits:
360° Continuous Pan; Pitch: -110°~+10°
Voltage:
24V
Highlight:

LWIR Electro Optical Tracking System

,

2axis Electro Optical Tracking System

,

24V Electro Optical Tracking

Product Description

Two Axis Optical LWIR Electro Optical Tracking System With Laser Rangefinder


TS170C is a 2 axis optical camera with visible light, thermal, and laser sensors. Which make it able to provide stable vedio and image under multiple environments. Having thermal sensor ensures it working nightly, and laser rangefinder gives it the important ability to target and track the objects. Besides, the high resolution of EO & IR thermal camera guarantee the the target tracking function have high stabilization.



Functions


1. Provide the infrared video and image for detection area

2. High precision visual axis stabilization function

3. With the capability of detection and recognition for ground target

4. Support search, tracking, lock, guiding, etc working ways

5. With character overlay, custom and display functions;

6. With self - check and fault diagnosis function

7. support target postion and laser ranging

8. Self-inspection and fault diagnosis



Specifications


EO sensor Wavelength 0.4μm～0.9μm
Resolution 1920x1080
Focal length 4.3mm～129mm(30X)
FOV 63.7°～2.3°
Video output HD-SDI(1080P 30Hz)
Distance PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km
IR sensor IR Type LWIR(un-cooled)
Wavelength 8～14μm
Resolution 640x512
Pixel 12um
NETD 40mk
Focus length 63mm/F0.83
FOV 6.9º×5.5º
Distance PEOPLE:Detection 1.8km; Recognition 0.4km
VEHICLE:Detection 10km; Recognition 2.5km
Laser rangefinder Wavelength 1535nm
Performance
Ranging distance 4km
Ranging accuracy ±2
Servo System Rotating limits 360º continuous Pan, Pitch: -110° ~+10 º
Angular accuracy: ≤2mrad
Stablization accuracy ≤100μrad(1σ)(2°/Hz,1°/2Hz)
Max.angular speed ≥50°/s
Max. angular acceleration: ≥90°/S²
Tracking Functions Motion speed: 30pixel/frame
Target imaging contrast: 8%
Target imaging pixel(Mini) 4x3 pixels
Support Anti -occlusion without loss of function
Interface Communication
interface		 RS422 x2(TTL optional)
Video output HDSDI(Ethernet optional)


Mechanical Drawing

【TS170C】Two Axis Optical LWIR Electro Optical Tracking System With Laser Rangefinder 0



Company Profile


Chengdu HONPHO Technology Co., Ltd. was established in March 2018. It is a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric system. HONPHO main product is spherical photoelectric payload systems, this payload wildly deployed in UAV,unmanned ships, umanned vehicle,helicopter and low speed fixed wing aricrafy. especially for reconnaissance and strike UAV and armed helicopter. HONPHO has nearly 5,000 square meters of space to meet the needs of R&D, production, operation and office. More than 100 employees, include 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4researchers are joined HONPHO. HONPHO won more than 10 prizes of national and national defense science and technology progress , and have over 20 intellectual property rights. We are committed to building HONPHO into a world-renowned photoelectric system high-tech enterprise

【TS170C】Two Axis Optical LWIR Electro Optical Tracking System With Laser Rangefinder 1



Certificate of HONPHO

【TS170C】Two Axis Optical LWIR Electro Optical Tracking System With Laser Rangefinder 2

Tags:

Electro Optical Tracking System,

UAV Gimbal Camera,

EOIR camera
