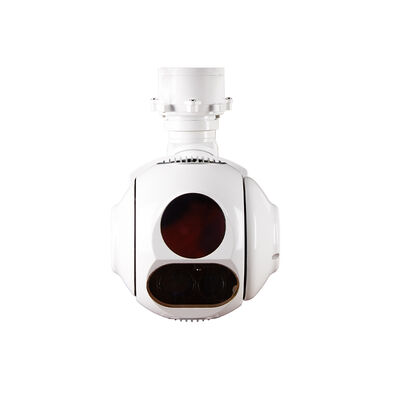

【TS120BT】3 Axis Gyro Stabilized Gimbal Camera Airborne Electro 360° Continuous Rotation

Products

UAV Infrared Camera

export@honpho.com

+8618780040180

Contact Now

【TS120BT】3 Axis Gyro Stabilized Gimbal Camera Airborne Electro 360° Continuous Rotation

MOQ:	1
Price:	Negotiation
Payment Method:	30pcs per Month
Supply Capacity:	Air packing case

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HONPHO

Certification

ISO9001:2015/GB/T 19001-2016

Model Number

TS120BT

Dimension:

≤Φ120mm×184mm

Product Name:

Airborne Electro Photoelectric Pod

Weight:

≤860g

Rotating Limits:

360º Continuous Pan, Pitch: -110° ~+10 º, Rolling: -40°~+40°

Angular Accuracy:

≤2mrad

Working Temperature:

-20~60°

Highlight:

Gyro Stabilized Gimbal Camera

Airborne Electro Gimbal Camera

Airborne 3 Axis Gimbal Camera

Product Description

3 Axis Gyro Stabilized Gimbal Camera Airborne Electro 360° Continuous Rotation

TS120BT is three- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in 30X HD zoom camera and laser rangefinder, mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc, meet the needs of mapping,inspection and other application scenarios.

Functions

1. Clear and visible video and image for effective target area detection.

2. High-precision visual axis stabilization for steady imaging in challenging environments.

3. Enhanced surveillance capabilities with ground target detection and identification.

4. Versatile working modes: search, track, lock, and guide.

5. Advanced features: character overlay, custom settings, and display functions.

6. Self-check and fault diagnosis for reliable performance.

7. Improved tracking with target position and laser ranging support.

Specifications

EO sensor	Wavelength	0.4μm～0.9μm
	Resolution	1920x1080
	Focal length	4.3mm～129mm(30X)
	FOV	63.7°～2.3°
	Video output	HD-SDI(1080P 30Hz)
	Distance	PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km

Laser rangefinder	Wavelength	905nm
	Performance	3m~1km
	Ranging distance	3~1000m
	Ranging accuracy	±3

Servo System	Rotating limits	360º continuous Pan, Pitch: -110° ~+10 º
	Angular accuracy:	≤2mrad
	Stablization accuracy	≤100μrad(1σ)(2°/Hz,1°/Hz Swing)
	Max.angular speed	≥50°/s
	Max. angular acceleration:	≥90°/S

Tracking Functions	Motion speed:	30pixel/frame
	Target imaging contrast:	8%
	Target imaging pixel(Mini)	4x3 pixels
	Support	Anti -occlusion without loss of function

Interface	Communication interface	RS422 x2(TTL optional)
	Video output	HD-SDI x1


Mechanical Drawing

【TS120BT】3 Axis Gyro Stabilized Gimbal Camera Airborne Electro 360° Continuous Rotation 3

Maintenance

During the power-on inspection of the pod, check whether there are any foreign matters on the glass surface of the payload window. If there are any foreign matters such as dust or soil, use the lens wipe leather or long fiber cotton with lens cleaning solution to wipe it off gently.

After the payload is removed from the aircraft, it shall be loaded into the payload packaging box for dry storage.

【TS120BT】3 Axis Gyro Stabilized Gimbal Camera Airborne Electro 360° Continuous Rotation 4

Certificate of HONPHO
