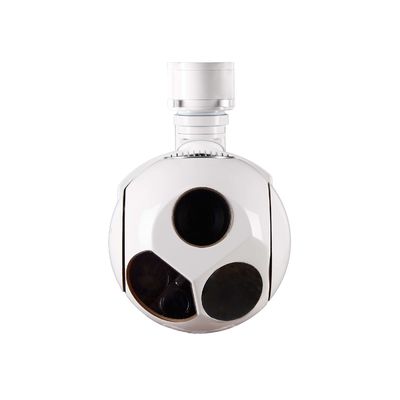

30X HD 3Axis Photoelectric UAV Gimbal Camera With Laser Rangefinder

MOQ: 1
Price: Negotiation
Standard Packaging: Air packing case
Supply Capacity: 30pcs per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONPHO
Certification
ISO9001:2015/GB/T 19001-2016
Model Number
TS130CT-01
Product Name:
UAV HD Gimbal Camera
Dimension:
≤Φ130mm×194mm
Weight:
≤900g
NETD:
50mk
Tracking Speed:
30pixel/frame
Working Temperature:
-20~60°
Highlight:

Photoelectric UAV Gimbal Camera

,

3Axis UAV Gimbal Camera

,

30X HD Uav Camera

Product Description

30X HD 3Axis Photoelectric UAV Gimbal Camera With Laser Rangefinder



TS130CT-01 is three- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in 30X HD zoom camera and longwave infrared module(LWIR uncooled) and laser rangefinder, mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc, meet the needs of mapping, surveillance, reconnaissance and other application scenarios.





Functions



1. Provide the infrared video and image for detection area

2. High precision visual axis stabilization function

3. With the capability of detection and recognition for ground target

4. Support search, tracking, lock, guiding, etc working ways

5. With character overlay, custom and display functions;

6. With self - check and fault diagnosis function

7. support target postion and laser ranging

8. Self-inspection and fault diagnosis





Specifications



EO sensor Wavelength 0.4μm～0.9μm
Resolution 1920x1080
Focal length 4.3mm～129mm(30X)
FOV 63.7°～2.3°
Video output HD-SDI(1080P 30Hz)
Distance PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km
IR sensor IR Type LWIR(un-cooled)
Wavelength 8～14μm
Resolution 640x512
Pixel 12um
NETD 50mk
Focus length 25mm/F1.0
FOV 17.4º×14º
Distance PEOPLE:Detection 0.7km; Recognition 0.22km
VEHICLE:Detection 4.2km; Recognition 1km
Laser rangefinder Wavelength 905nm/1535nm
Performance
Ranging distance 1.5km(3km optional)
Ranging accuracy ±3
Servo System Rotating limits 360º continuous Pan, Pitch: -110° ~+10 º
Angular accuracy: ≤2mrad
Stablization accuracy ≤200μrad(1σ)(2°/Hz,1°/Hz Swing)
Max.angular speed ≥50°/s
Max. angular acceleration: ≥90°/S
Tracking Functions Motion speed: 30pixel/frame
Target imaging contrast: 8%
Target imaging pixel(Mini) 4x3 pixels
Support Anti -occlusion without loss of function
Interface Communication
interface		 RS422 x2(TTL optional)
Video output HD-SDI x1




30X HD 3Axis Photoelectric UAV Gimbal Camera With Laser Rangefinder 030X HD 3Axis Photoelectric UAV Gimbal Camera With Laser Rangefinder 130X HD 3Axis Photoelectric UAV Gimbal Camera With Laser Rangefinder 2



Mechanical Drawing



30X HD 3Axis Photoelectric UAV Gimbal Camera With Laser Rangefinder 3



Cautions



a) Don’t touch the detector window with your hands or other objects

b) Don’t plug or remove the connector without disconnecting the power supply.

c) Connect power supplies and signals according to the interface definition to prevent device damage

d) Don’t disassemble the equipment. If there is any fault, please contact HONPHO for professional maintenance



HD & Factory

30X HD 3Axis Photoelectric UAV Gimbal Camera With Laser Rangefinder 4





Certificate of HONPHO

30X HD 3Axis Photoelectric UAV Gimbal Camera With Laser Rangefinder 5
