Name: 2Axis Dual Light Electro Optical Surveillance System Gyro Stabilized Platform
Brand: Chengdu Honpho Technology Co., Ltd.
SKU: TS120B-01
Availability: InStock

Home > products > UAV Zoom Camera >

2Axis Dual Light Electro Optical Surveillance System Gyro Stabilized Platform

2Axis Electro Optical Surveillance System

120mm×171mm Gyro Stabilized Platform

Place of Origin:

China

Brand Name:

HONPHO

Certification:

ISO9001:2015/GB/T 19001-2016

Model Number:

TS120B-01

Request A Quote

Product Details

Product Name:

Photoelectric Surveillance System

Dimension:

≤Φ120mm×171mm

Weight:

≤810g

Stabilization Accuracy:

≤100μrad(1σ）(2°/Hz,1°/Hz Swing)

Rotating Limits:

360º Continuous Pan, Pitch: -110° ~+10 º

Working Temperature:

-20~60°

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Air packing case

Supply Ability

30pcs per Month

30X Visible Electro Optical Surveillance System LWIR Gimbal Thermal UAV Zoom Camera

Get Best Price

Video

15km Detection Distance Electro Optic Drone System ISR Payload UAV Zoom Camera

Get Best Price

15X Electro Optical Surveillance System EO Sensor 2 Axis Multispectral UAV Zoom Camera

Get Best Price

30X Visible Electro Optical Surveillance System LWIR Gimbal Thermal UAV Zoom Camera

Get Best Price

86-028-83139288

pengyong@honpho.com

86-028-87650901

Contact Now

Product Description

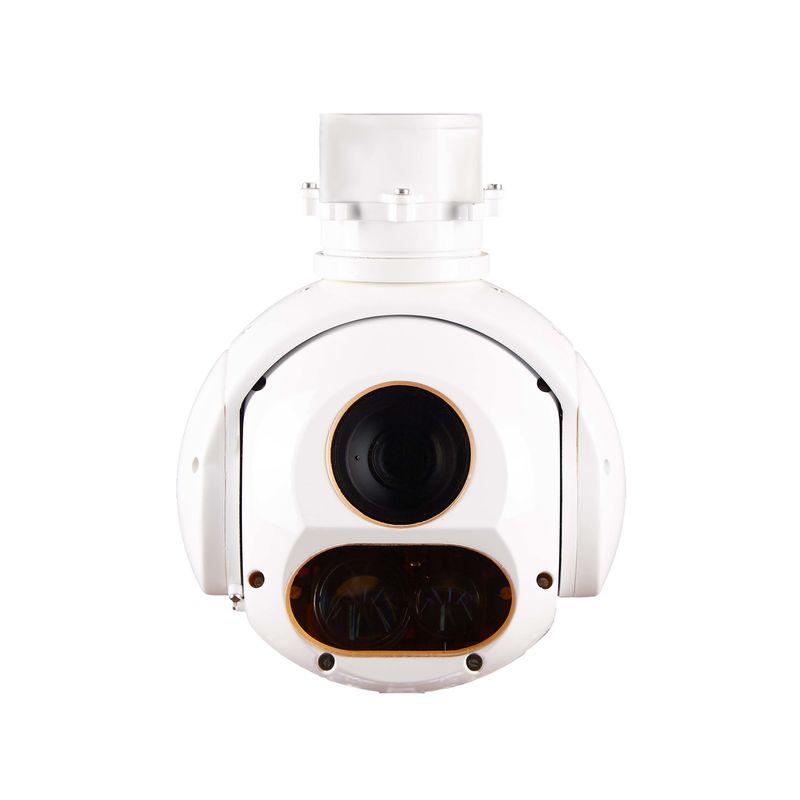

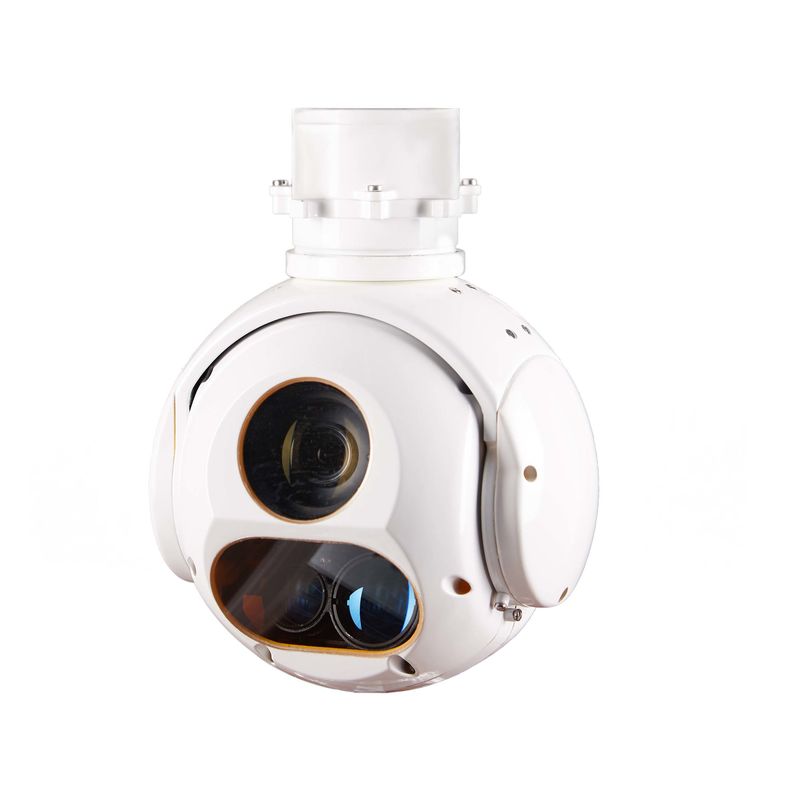

2Axis Dual Light Electro Optical Surveillance System Gyro Stabilized Platform

TS120B-01 is two- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in 30X HD zoom camera, mainly used in airborne imaging detection, recognition, tracking, etc, meet the needs of mapping, surveillance, reconnaissance and other application scenarios.

TS120B-01 with light weight, mature and reliable technology, and can be assembled in various types of UAV and other aviation carriers, it can also be assembled on ships and vehicles to meet the needs of sea and air.

Functions

1. Provide the visible video and image for detection area

2. High precision visual axis stabilization function

3. With the capability of detection and recognition for ground target

4. Support search, tracking, lock, guiding, etc working ways

5. With character overlay, custom and display functions;

6. With self - check and fault diagnosis function

Specifications

EO sensor	Wavelength	0.4μm～0.9μm
	Resolution	1920x1080
	Focal length	4.3mm～129mm(30X)
	FOV	63.7°～2.3°
	Video output	HD-SDI(1080P 30Hz)
	Distance	PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km

Laser rangefinder	Wavelength	905nm
	Performance	3m~1km(3km optional)
	Ranging distance	3~1000m
	Ranging accuracy	±3

Servo System	Rotating limits	360º continuous Pan, Pitch: -110° ~+10 º
	Angular accuracy:	≤2mrad
	Stablization accuracy	≤100μrad(1σ)(2°/Hz,1°/Hz Swing)
	Max.angular speed	≥50°/s
	Max. angular acceleration:	≥90°/S

Tracking Functions	Motion speed:	30pixel/frame
	Target imaging contrast:	8%
	Target imaging pixel(Mini)	4x3 pixels
	Support	Anti -occlusion without loss of function

Interface	Communication interface	RS422 x1
	Video output	HD-SDI x1

Mechanical Drawing

Unpacking of the product

The payload is fixed in the packaging box to prevent mechanical damage during transport. After received product, the user should first check whether the packaging box is in good condition. In case of damage to the box, the cargo carrier and the after-sales service department shall be notified in time.

Open the packaging box and check the product packing list one by one.

2Axis Dual Light Electro Optical Surveillance System Gyro Stabilized Platform 4
