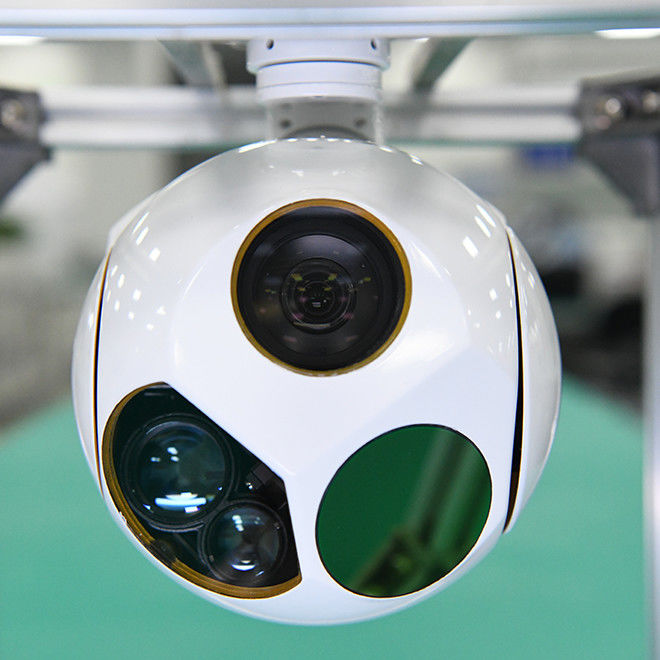

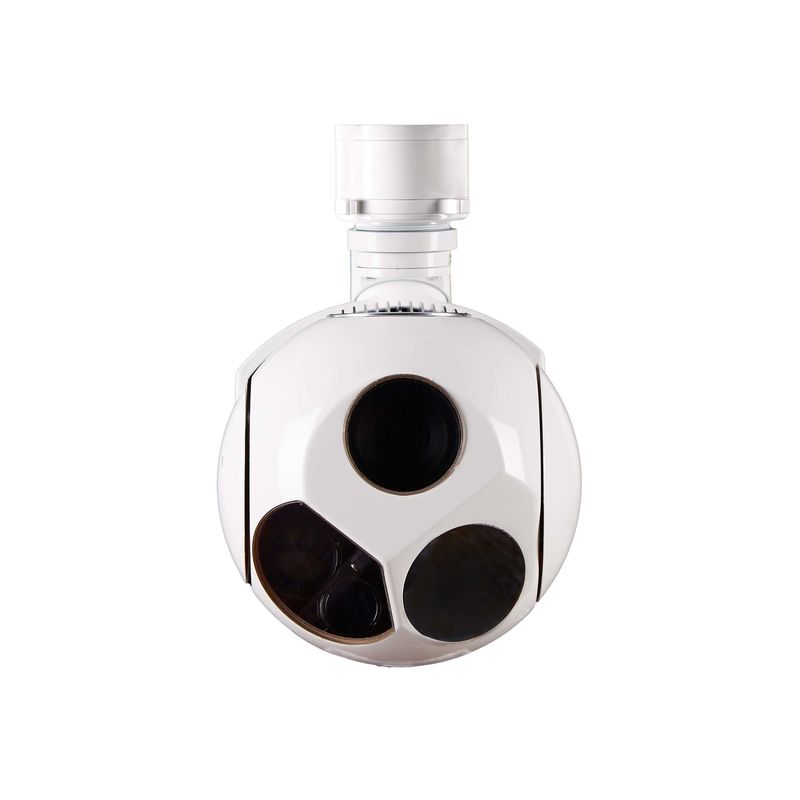

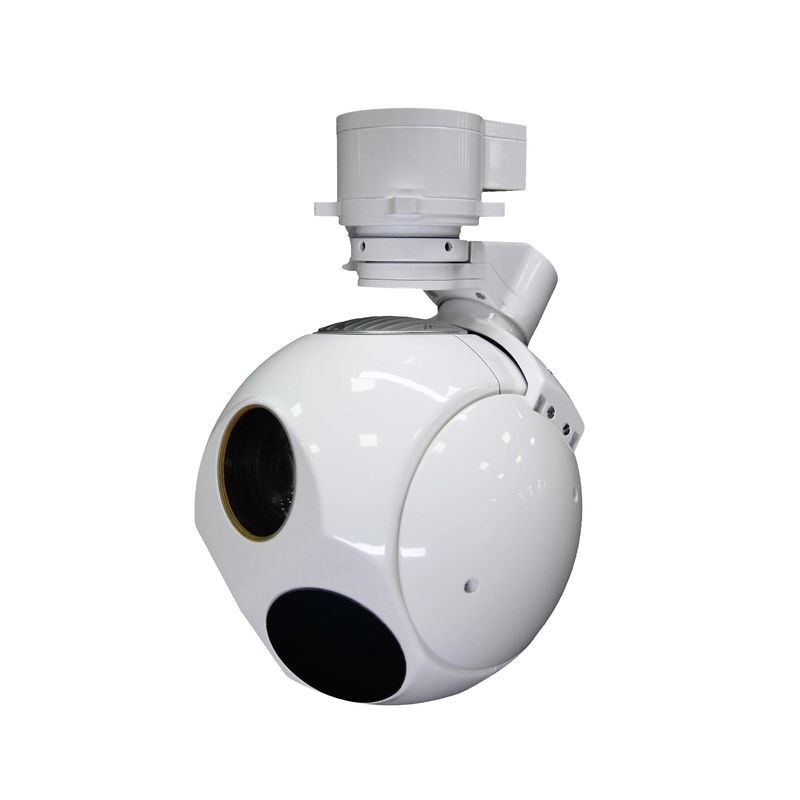

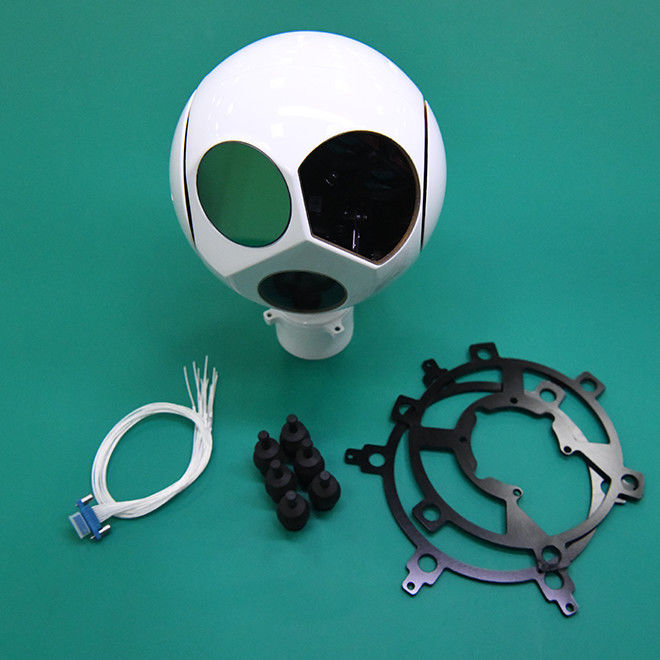

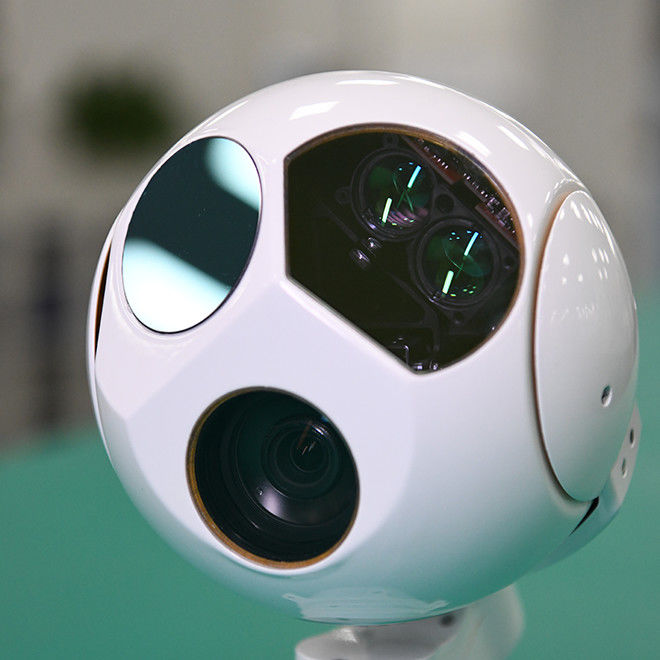

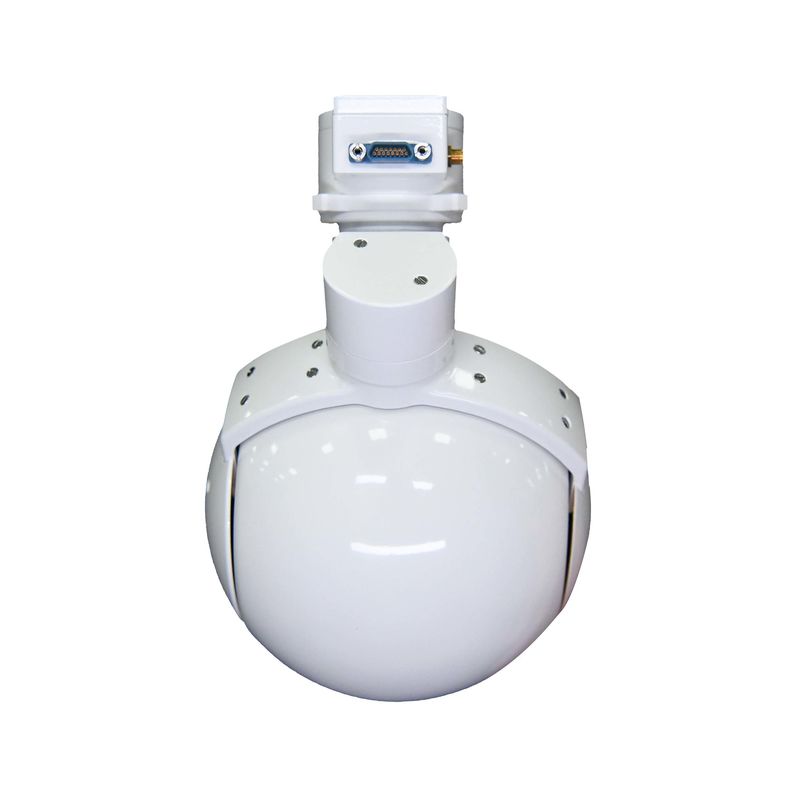

TS130CT Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible
  • name
  • name
  • name
  • name
  • name
  • name

TS130CT Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible

MOQ: 1
Price: Negotiation
Standard Packaging: Plastic box
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONPHO
Certification
ISO9001:2015/GB/T 19001-2016
Model Number
TS130CT
Product Name:
Electro Optical Targeting System
Dimension:
≤Φ130mm×194mm
Weight:
≤1.2kg
Power Consumption:
Average:≤15W, Peak: ≤30W
Working Temperature:
-20℃～55℃
Voltage:
12V
Highlight:

IR Surveillance Thermal Camera

,

EO Surveillance Thermal Camera

,

TS01DT Electro Optical Targeting System

Product Description

TS130CT Electro Optical And Infrared Sensors (EO/IR) Surveillance Thermal Camera For HD Visible And Long Wave Infrared Vi



TS130CT is three- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in
30X HD zoom camera and longwave infrared module(LWIR uncooled) and laser rangefinder,
mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc,
meet the needs of mapping, surveillance, reconnaissance and other application scenarios.
TS130CT-01 with light weight, mature and reliable technology, and can be assembled in various types
of UAV and other aviation carriers, it can also be assembled on ships and vehicles to meet the needs
of sea and air.



TS130CT Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible 0


Functions


a) Provide the HD visible and long wave infrared video and image for detection area
b) High precision visual axis stabilization function
c) With the capability of detection and recognition for ground target
d) Support search, tracking, lock, guiding, etc working ways
e) With character overlay, custom and display functions;
f) With target positioning functions
g) With laser ranging function
h) With self - check and fault diagnosis function

Specifications


EO sensor Wavelength 8μm～14μm
Resolution 1920x1080
Focal length
5.1mm~153mm
FOV
55.3º×2.6º
Video output
HD-SDI,1080P,30Hz
Distance

PEOPLE:Detection 6.6km;Recognition 1.6km

VEHICLE:Detection 15.2km;Recognition 9.9km
Servo System Rotating limits
360º continuous Pan, Pitch: -110° ~+10 º, Rolling: -40°~+40°
Angular accuracy: ≤2mrad
Stablization accuracy ≤100μrad(1σ)(2°/Hz,1°/Hz Swing)
Max.angular speed ≥50°/s
Max. angular acceleration: ≥90°/S
Tracking Functions Motion speed: 30pixel/frame
Target imaging contrast: 8%
Target imaging pixel(Mini) 4x3 pixels
Support Anti -occlusion without loss of function
Interface Communication
interface		 RS422 x2
Video output HD-SDI x1


Mechanical Drawing


TS130CT Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible 1

TS130CT Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible 2


Company Profile


Chengdu HONPHO Technology Co., Ltd. was established in March 2018. It is a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric system. HONPHO main product is spherical photoelectric payload systems, this payload wildly deployed in UAV,unmanned ships, umanned vehicle,helicopter and low speed fixed wing aricrafy. especially for reconnaissance and strike UAV and armed helicopter. HONPHO has nearly 5,000 square meters of space to meet the needs of R&D, production, operation and office. More than 100 employees, include 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4researchers are joined HONPHO. HONPHO won more than 10 prizes of national and national defense science and technology progress , and have over 20 intellectual property rights. We are committed to building HONPHO into a world-renowned photoelectric system high-tech enterprise


HONPHO headquarters and R&D center


TS130CT Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible 3



HONPHO Production Base


TS130CT Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible 4



HONPHO Exhibition Information


TS130CT Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible 5
