4k HD LWIR PTZ 30x Optical Zoom UAV Thermal Security Camera For Detection

MOQ: 1
Price: Negotiation
Standard Packaging: Plastic box
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONPHO
Certification
ISO9001:2015/GB/T 19001-2016
Model Number
TS170C-03
Product Name:
Electro Optical Camera
Dimension:
≤Φ150mm×205mm
Weight:
≤2Kg
Power Consumption:
Average:≤15W, Peak: ≤30W
Working Temperature:
-20℃～60℃
Voltage:
12V
Highlight:

30x UAV Thermal Security Camera

,

PTZ 30x Infrared Security Camera

,

4k HD LWIR Thermal Security Camera

Product Description

4k HD LWIR PTZ Anti-occlusion 30x optical zoom UAV Infrared Night Vision Thermal Camera for detection and recognition

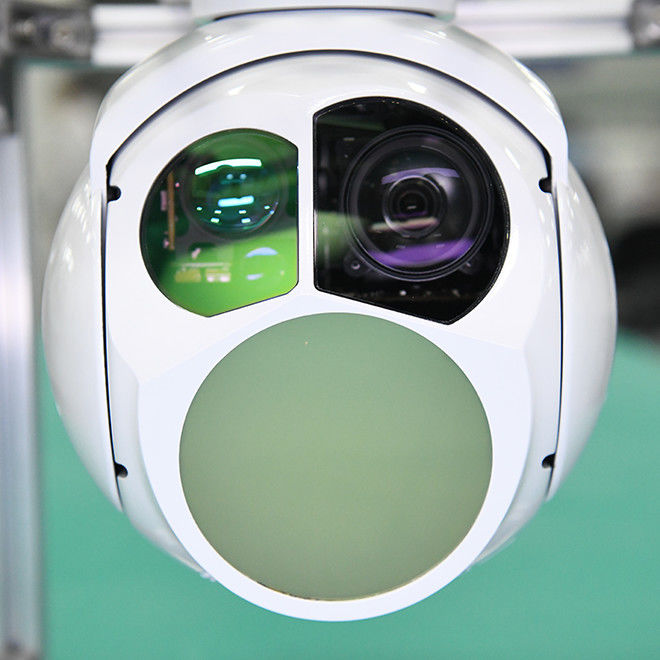

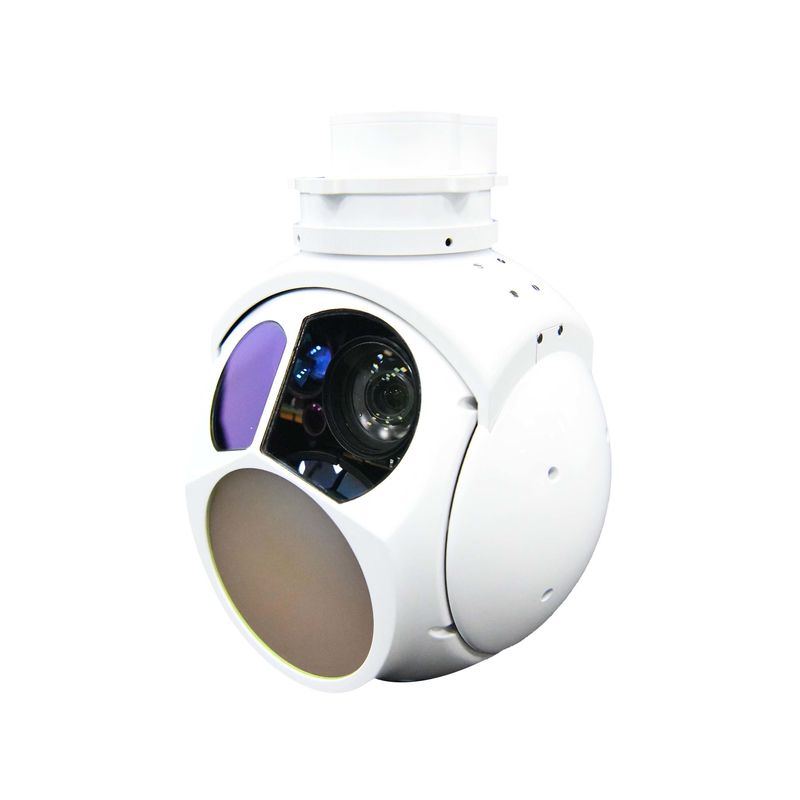

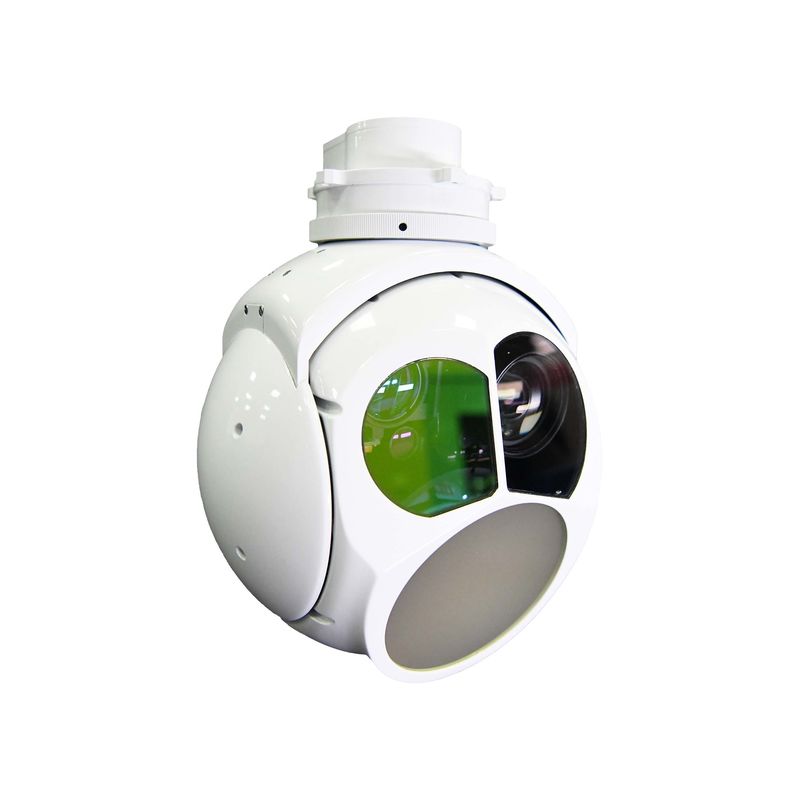

TS170C-03 is two- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built
in 30X HD zoom camera and longwave infrared module (LWIR uncooled) and laser rangefinder,
mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc,
meet the needs of mapping, surveillance, reconnaissance and other application scenarios.
TS170C-03 with light weight, mature and reliable technology, and can be assembled in various
types of UAV and other aviation carriers, it can also be assembled on ships and vehicles to meet
the needs of sea and air.



4k HD LWIR PTZ 30x Optical Zoom UAV Thermal Security Camera For Detection 0





4k HD LWIR PTZ 30x Optical Zoom UAV Thermal Security Camera For Detection 1



Functions



a) Provide the HD visible and long wave infrared video and image for detection area
b) High precision visual axis stabilization function
c) With the capability of detection and recognition for ground target
d) Support search, tracking, lock, guiding, etc working ways
e) With character overlay, custom and display functions;
f) With target positioning functions
g) With laser ranging function
h) With self - check and fault diagnosis function



Specifications



EO sensor Wavelength 0.4μm～0.9μm
Resolution 1920x1080
Focal length 4.3mm～129mm(30X)
FOV 63.7°～2.3°
Video output

Ethernet output (1080P 30Hz)
Distance

PEOPLE:Detection 6km;Recognition 2km

VEHICLE:Detection 15km;Recognition 8km
Servo System Rotating limits 360º continuous Pan, Pitch: -110° ~+10 º
Angular accuracy: ≤2mrad
Stablization accuracy ≤100μrad(1σ)(2°/Hz,1°/Hz Swing)
Max.angular speed ≥50°/s
Max. angular acceleration: ≥90°/S
Tracking Functions Motion speed: 30pixel/frame
Target imaging contrast: 8%
Target imaging pixel(Mini) 4x3 pixels
Support Anti -occlusion without loss of function
Interface Communication
interface		 RS422 x1
Video output
Ethernet (100mb) *1



Mechanical Drawing



4k HD LWIR PTZ 30x Optical Zoom UAV Thermal Security Camera For Detection 2



Company Profile



Chengdu HONPHO Technology Co., Ltd. was established in March 2018. It is a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric system. HONPHO main product is spherical photoelectric payload systems, this payload wildly deployed in UAV,unmanned ships, umanned vehicle,helicopter and low speed fixed wing aricrafy. especially for reconnaissance and strike UAV and armed helicopter. HONPHO has nearly 5,000 square meters of space to meet the needs of R&D, production, operation and office. More than 100 employees, include 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4researchers are joined HONPHO. HONPHO won more than 10 prizes of national and national defense science and technology progress , and have over 20 intellectual property rights. We are committed to building HONPHO into a world-renowned photoelectric system high-tech enterprise.



4k HD LWIR PTZ 30x Optical Zoom UAV Thermal Security Camera For Detection 3

4k HD LWIR PTZ 30x Optical Zoom UAV Thermal Security Camera For Detection 4



4k HD LWIR PTZ 30x Optical Zoom UAV Thermal Security Camera For Detection 5



Certificate of HONPHO



4k HD LWIR PTZ 30x Optical Zoom UAV Thermal Security Camera For Detection 6
