TS300D is a large pod featuring a two-axis, four-frame gyro-stabilized platform.

Electro Optical Pod
January 19, 2026
Category Connection: UAV Zoom Camera
Chat Now Contact Us
Tags:
#Electro Optical Surveillance System #EO System uav sensor payload #uav sensor payload
Brief: Here’s a fast, informative look at what this solution does and how it behaves. This video provides a detailed walkthrough of the TS300D Gyro-Stabilized Electro-Optical Surveillance System, showcasing its dual-axis, four-frame stabilization platform in action. You'll see demonstrations of its high-precision targeting, day/night operation with 1080p visible and dual IR sensors, and its capabilities for laser guidance, ranging, and tracking on unmanned aerial platforms.
Related Product Features:
  • Features a two-axis, four-frame gyro-stabilized platform with line of sight stabilization accuracy ≤35μrad.
  • Integrates 1080p visible and dual IR sensors (MWIR zoom and NIR fixed) for superior day and night performance.
  • Supports laser rangefinding with a wavelength of 1064nm, ranging from 300m to 8km with ±5m accuracy.
  • Enables multiple tracking functions including manual, geographic, automatic, and search tracking of targets.
  • Provides laser guidance for weapons with user-defined precise frequency codes and real-time angular data.
  • Offers 360° continuous pan and -110° to +20° pitch rotation with angular speeds up to ≥60°/s.
  • Includes self-check and fault diagnosis functions along with character overlay and custom display capabilities.
  • Designed for integration on UAVs, helicopters, and fixed-wing aircraft for reconnaissance and strike missions.
FAQs:
  • What is the stabilization accuracy of the TS300D system?
    The TS300D features a gyro-stabilized platform with a line of sight stabilization accuracy of ≤35μrad (1σ), ensuring precise targeting and imaging even in dynamic environments.
  • Can the TS300D operate effectively at night?
    Yes, the system is equipped with dual IR sensors—a MWIR zoom and a NIR fixed sensor—along with a 1080p visible light camera, providing reliable detection and identification capabilities during both day and night operations.
  • What is the effective range of the laser rangefinder?
    The integrated laser rangefinder operates at a wavelength of 1064nm and has a ranging distance from 300 meters up to 8 kilometers, with an accuracy of ±5 meters.
  • Which platforms is the TS300D compatible with?
    The TS300D is designed for deployment on various unmanned and manned platforms, including UAVs, unmanned vehicles, helicopters, and low-speed fixed-wing aircraft, particularly for reconnaissance and strike missions.
Related Videos

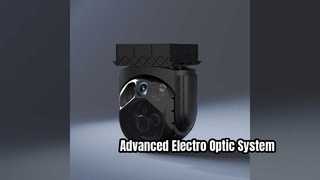

Multi Spectral Camera System 120kg 00:09
