High Stabilization Accuracy 2 Axis 1kg EO Sensor UAV Payload With RS422 Output

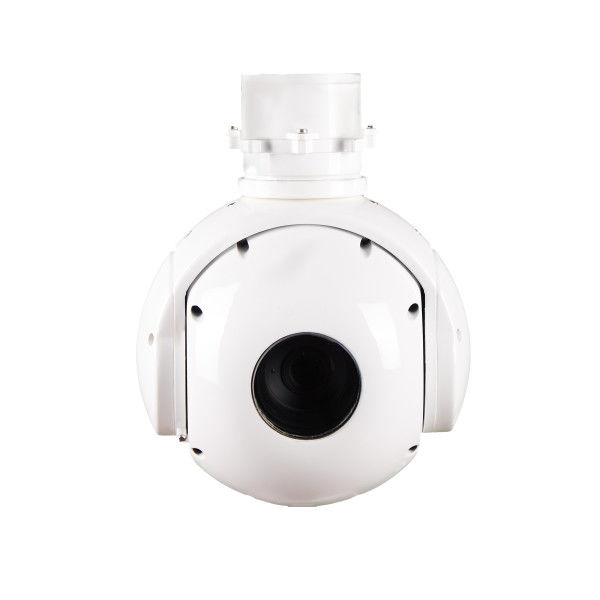

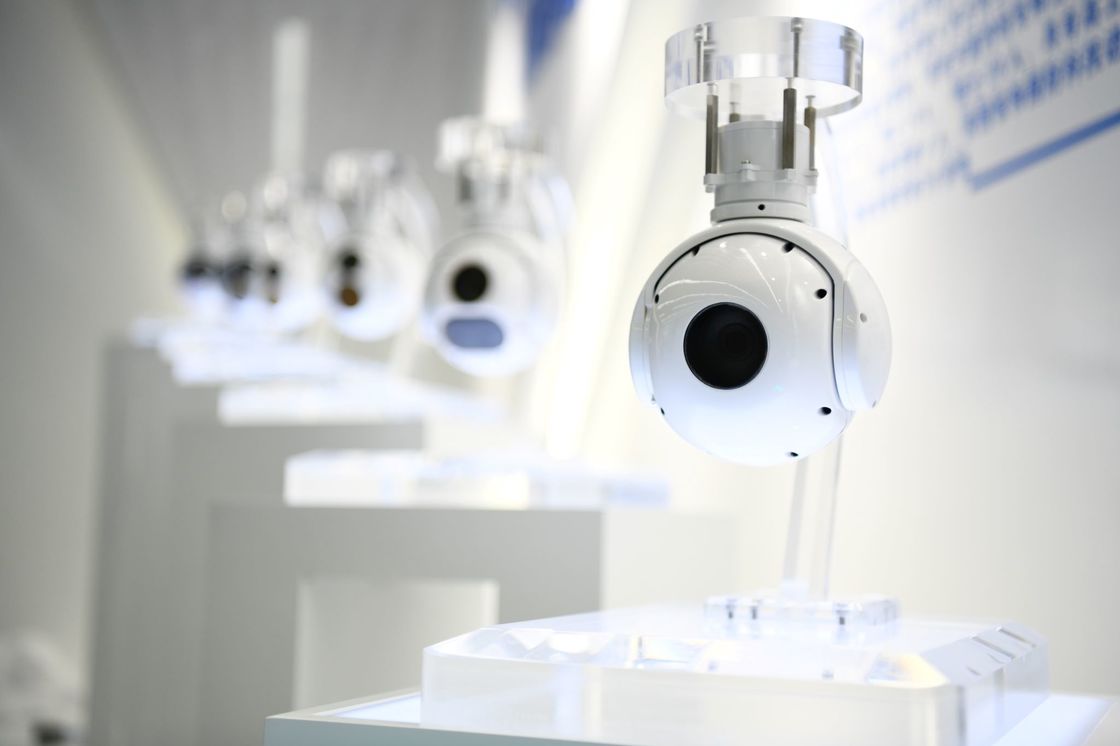

TS01 is two- axis gyro stabilized gimbal UAV Payload, support 360° continuous rotation, Built-in 30X HD zoom camera, mainly used in airborne imaging detection, recognition, tracking, etc, meet the needs of mapping, surveillance, reconnaissance and other application scenarios.

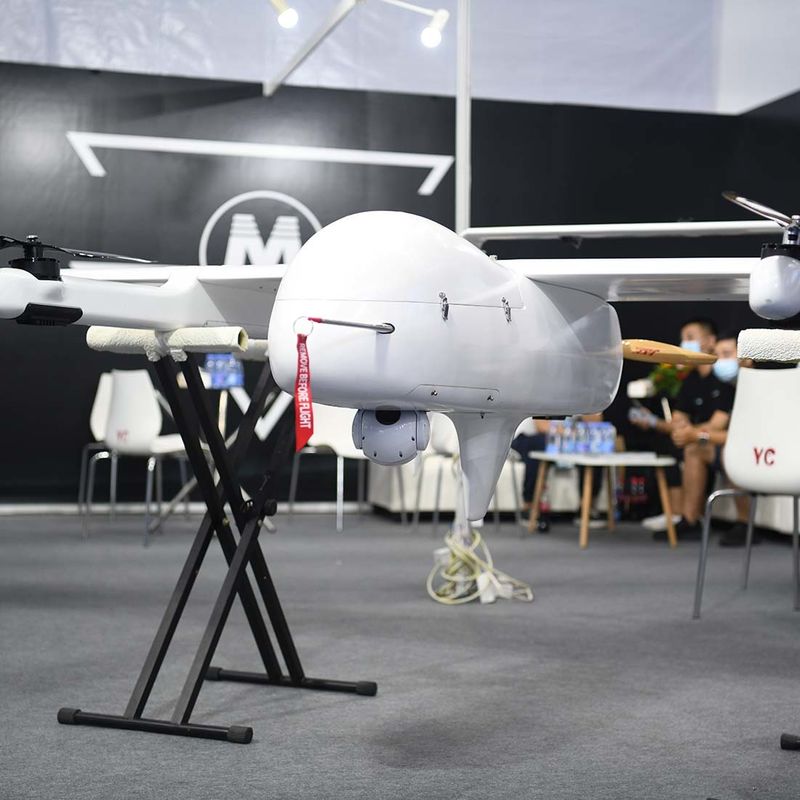

TS01 with light weight, mature and reliable technology, and can be assembled in various types of UAV and other aviation carriers, it can also be assembled on ships and vehicles to meet the needs of sea and air.
Functions
1. Provide the visible video image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
Specifications
| EO sensor |
Wavelength |
0.4μm～0.9μm |
| Resolution |
1920x1080 |
| Focal length |
4.3mm～129mm(30X) |
| FOV |
63.7°～2.3° |
| Video output |
HD-SDI(1080P 30Hz) |
| Distance |
PEOPLE:Detection 6km;Recognition 2km
VEHICLE:Detection 15km;Recognition 8km
|
| Servo System |
Rotating limits |
360º continuous Pan, Pitch: -110° ~+10 º |
| Angular accuracy: |
≤2mrad |
| Stablization accuracy |
≤100μrad(1σ)(2°/Hz,1°/Hz Swing) |
| Max.angular speed |
≥50°/s |
| Max. angular acceleration: |
≥90°/S |
| Tracking Functions |
Motion speed: |
30pixel/frame |
| Target imaging contrast: |
8% |
| Target imaging pixel(Mini) |
4x3 pixels |
| Support |
Anti -occlusion without loss of function |
| Interface |
Communication
interface |
RS422 x1 |
| Video output |
HD-SDI x1 |
Mechanical Drawing
