TS135C Airborne Imaging System 30X HD Zoom

Drone Payloads
January 28, 2026
Category Connection: Drone Payloads
Chat Now Contact Us
Tags:
#Electro Optical Tracking System #UAV Gimbal Camera #EOIR camera
Brief: Discover how the TS135C Gyro Stabilized Airborne Imaging System operates in this detailed demonstration. You will see the 30X HD zoom camera and infrared sensor in action, learn about its 360° continuous rotation capabilities, and observe how it performs detection, recognition, and tracking of ground targets for mapping and surveillance applications.
Related Product Features:
  • Features a two-axis gyro stabilized system with 360° continuous pan and pitch from -110° to +10° for precise targeting.
  • Integrates a 30X HD zoom camera with a focal length from 4.3mm to 129mm and a field of view from 63.7° to 2.3°.
  • Includes an un-cooled longwave infrared sensor with 640x512 resolution for thermal imaging in the 8–14μm wavelength.
  • Equipped with a laser rangefinder operating at 1535nm, providing accurate distance measurement from 50 to 3000 meters.
  • Offers high detection and recognition ranges: for people up to 6km/2km (EO) and 0.8km/0.2km (IR); for vehicles up to 15km/8km (EO) and 5km/1.2km (IR).
  • Supports multiple working modes including search, tracking, lock, and guiding with motion speed up to 30 pixels per frame.
  • Provides HD-SDI video output at 1080P 30Hz with character overlay and self-check fault diagnosis functions.
  • Delivers high stabilization accuracy of ≤100μrad and angular accuracy of ≤2mrad for reliable performance in dynamic environments.
FAQs:
  • What are the primary applications of the TS135C Airborne Imaging System?
    The TS135C is mainly used for airborne imaging detection, recognition, and tracking, meeting the needs of mapping, surveillance, and laser ranging applications in various scenarios.
  • What sensors are integrated into the TS135C system and what are their key capabilities?
    The system integrates an electro-optical sensor with 30X HD zoom and an un-cooled longwave infrared sensor. The EO sensor detects people up to 6km and vehicles up to 15km, while the IR sensor detects people up to 0.8km and vehicles up to 5km, with a laser rangefinder for precise distance measurement.
  • How does the stabilization system enhance the performance of the TS135C?
    The two-axis gyro stabilized system provides 360° continuous rotation and high stabilization accuracy of ≤100μrad, ensuring clear and steady imaging even during movement, with angular accuracy of ≤2mrad for precise targeting.
Related Videos
TS120B Targeting System: See Farther 00:09

TS120B Targeting System: See Farther
ISR Payload
January 28, 2026

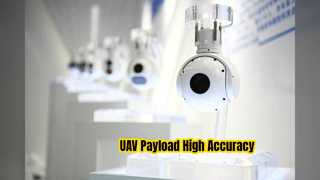

UAV Payload 1kg EO Sensor High Accuracy 00:15
